Press systems for laboratory usage

Press technology for various applications

  • Compression presses
  • Thermoform presses
  • Specialty constructions for various applications

The RUCKS modular construction system

Press

  • Frame-, column or c-frame design
  • Up- and down stroke design
  • Press force: starting at 0,01 kN
  • Heating plate size: individually selectable
  • Stroke/ daylight height: individually selectable
  • ...

Technical press options

  • Controlled hydraulics for a parallelism of the pressure plate up to ±0,05 mm/m and positioning accuracy of up to ±0,05 mm
  • Heating plates
    Temp. up to 500°C
    Heat rate up to 30K/min possible
    Medium steam, thermal oil or electrical
    Precision up to ±0.25 °K at heating plate surface
    Cooling controlled or not controlled
  • Retractable heating & tool bearing plate
  • Ejector systems
  • Vacuum chamber
  • ...

Stations also available for integration

  • Feed & insertion stations
  • Pre-heating stations, equipped with IR heating, contact heating or convection oven, ...
  • Testing stations
  • ...

Handling & automation

  • Custom-made loading solutions
  • Integration with linear systems and robots
  • Product-specific gripping systems
  • ...

Examples of customer-specific press systems

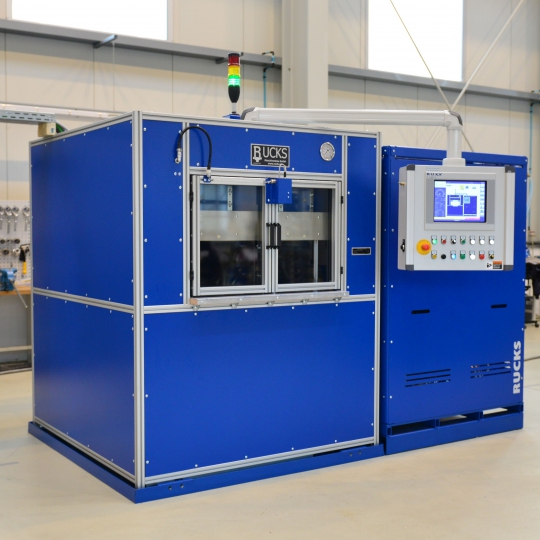

KV 275 laboratory press
10 – 1.000 kN, 400 x 400 mm, 300°C

KV 265 laboratory press
0,1 - 50 kN (all electric), 200 x 200 mm, 150°C, repetition accuracy: 0,01mm

KV 241 hand lever press
0-400 kN, 320 x 320 mm, 250°C

KV 283 laboratory press
34 kN, 210 x 210 mm, 200°C, pneumatic movable tool plate, pneumatic ejector

KV 249 laboratory press
1.700 kN, 500 x 500 mm, 400°C, cooling function

KV 207 vacuum chamber press
219 kN, 250 x 250 mm, 350°C, cooling function

KV 256 laboratory press
3-550 kN, control accuracy: ±1,5 kN, 400 x 400 mm

KV 182 laboratory press
1.700 kN, 500 x 500 mm, 200°C heated with steam, 3 daylights

KV 214 laboratory press
1.000 kN, 600 x 600 mm, 350°C, 2 daylights, cooling function, retractable tool plate
